KH-1350 cutting plotter machines vinyl cutting machine

KH-1350 cutting plotter machines vinyl cutting machine

Model Number:KH-1350
Voltage:AC90-264v
Paper Feed Width:1350mm
Cutter Pressure:20-500G
Cutting Width:1260mm
Cutting Speed:20-800mm/s
Driver:Stepper Motor
Software:ARTCUT, Signcut, Signmaster, Flexi, Graph-cut
Warranty:1 Year
Knife press:20-500g

  • Item No :

    001
  • Order(MOQ) :

    10pcs
  • Payment :

    KH
  • Product Origin :

    China
  • Color :

    Color can be customized as your request
  • Shipping Port :

    Shanghai
  • Lead Time :

    4-7days
  • Weight :

    28
Product Description
plotter cutting machine
Model
KH-375
KH-720
KH-870
KH1350
EH-1660
Max. media width
450mm
720mm
870mm
1350mm
1660mm
Max. cutting width
360mm
630mm
780mm
1260mm
1570mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
ABS carriage
Stand
NONE/Iron bracket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W

Introduction:
Adjustable the pinch-rollers according to the paper width. Digital adjusts the force and speed to handle the cutting process. Inertial rotating blade holder enables more accurate and high-quality cutting. The emergency stop/start feature allows you to stop cutting and restart. Backlight LCD for easier handling of the working process. USB connection is accomplished through serial.
Application:
It can be used for cutting indicator/ advertisement sign/ window decoration/ automobile film/ heat transfer lettering film. Suitable for advertising industry, Automobile beauty industry, fashion design industry,etc,
plotter cutting machine vinyl cutter
Detailed Images

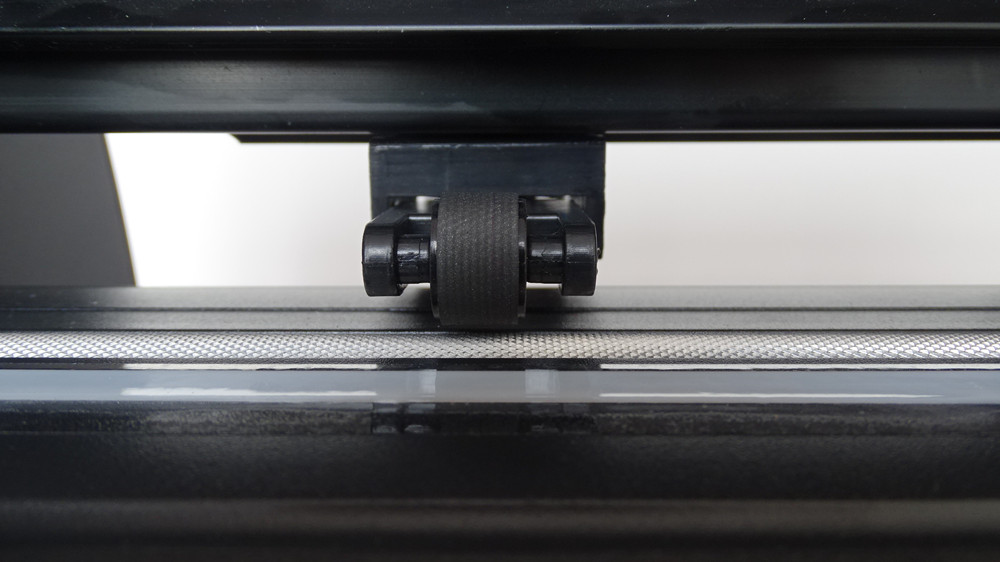

Aluminum roll

Aluminum roll ensures the smooth moving of the cutting material.

Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
