products

Home /Cutting plotter /

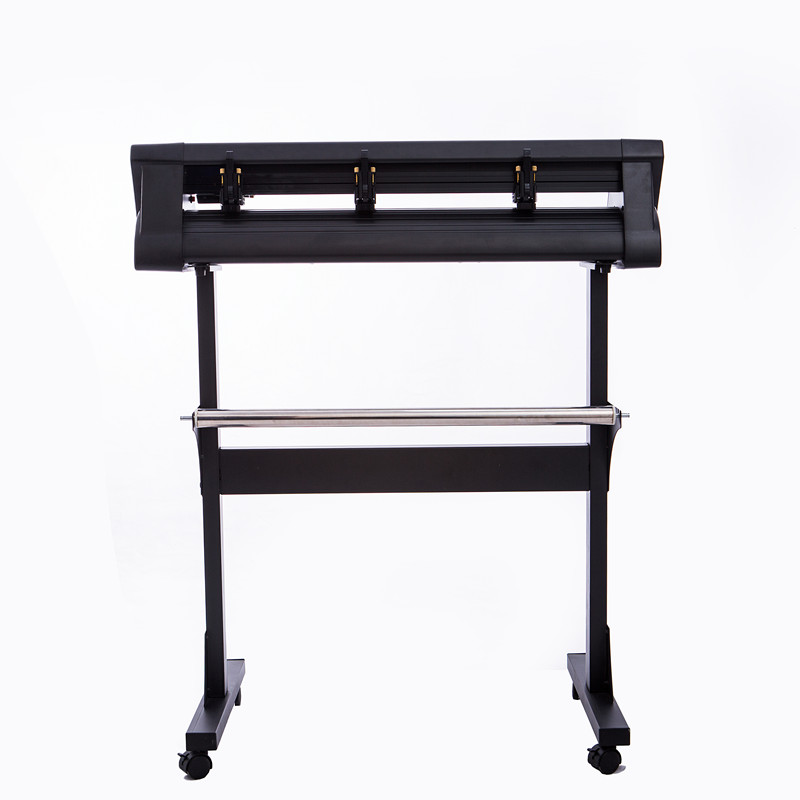

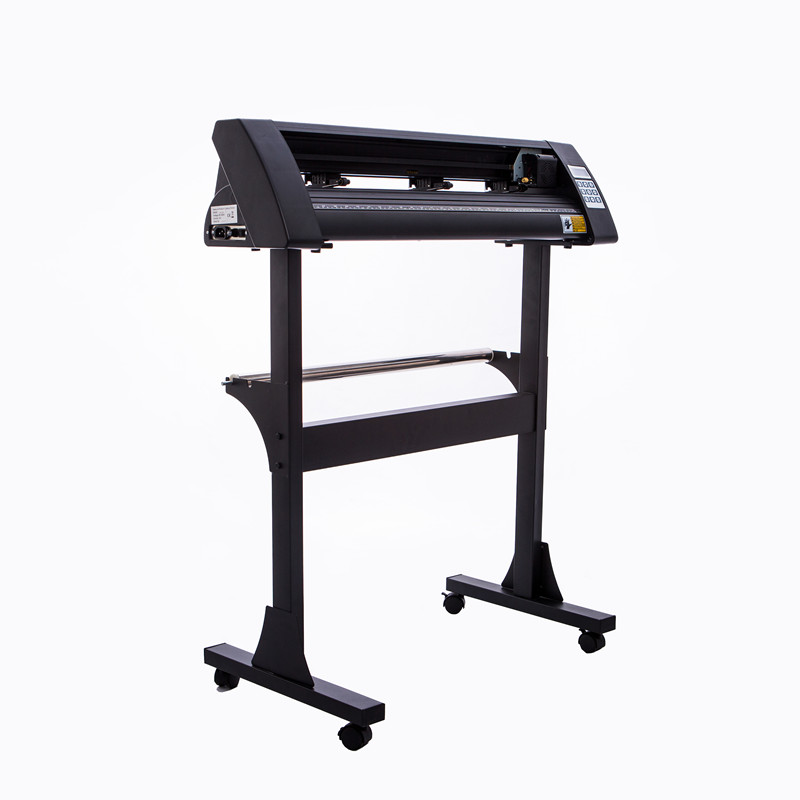

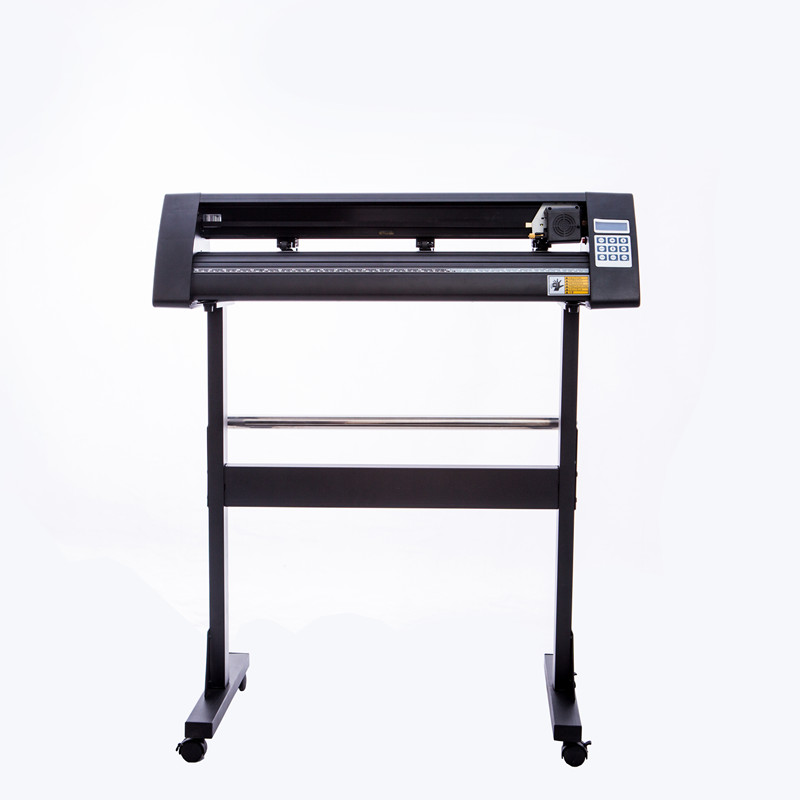

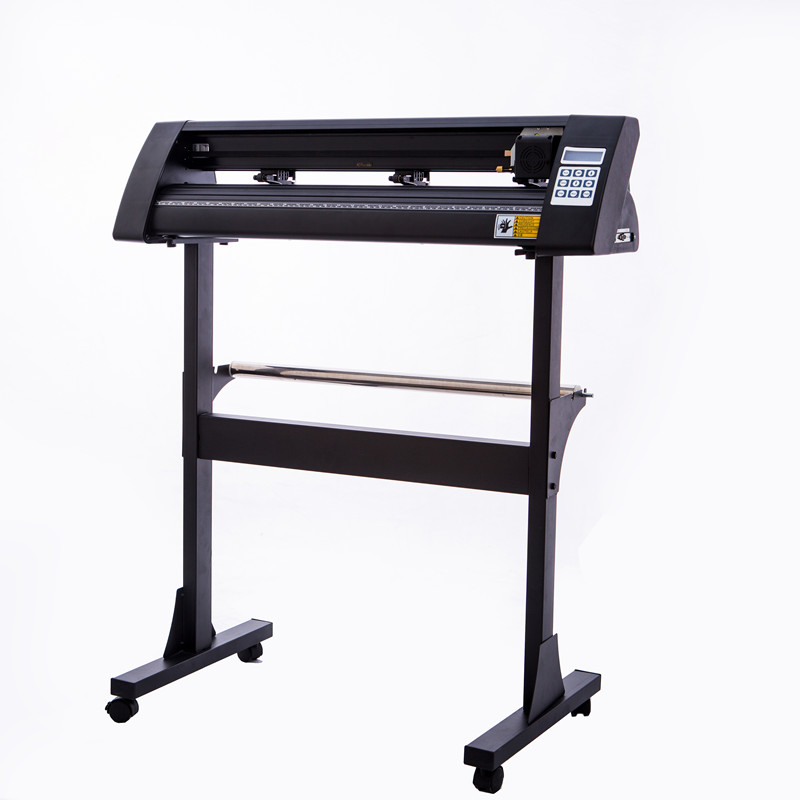

KH-720 cutting plotter machines vinyl cutting machine

KH-720 cutting plotter machines vinyl cutting machine

Model Number:KH-720
Voltage:AC90-264v
Paper Feed Width:720mm
Cutter Pressure:20-500G
Cutting Width:630mm
Cutting Speed:20-800mm/s
Driver:Stepper Motor
Software:ARTCUT, Signcut, Signmaster, Flexi, Graph-cut
Warranty:1 Year
Knife press:20-500g

  • Item No :

    001
  • Order(MOQ) :

    10pcs
  • Payment :

    KH
  • Product Origin :

    China
  • Color :

    Color can be customized as your request
  • Shipping Port :

    Shanghai
  • Lead Time :

    4-7days
  • Weight :

    28
Product Description
plotter cutting machine
Model
KH-375
KH-720
KH-870
KH1350
EH-1660
Max. media width
450mm
720mm
870mm
1350mm
1660mm
Max. cutting width
360mm
630mm
780mm
1260mm
1570mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
ABS carriage
Stand
NONE/Iron bracket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W

Introduction:
Adjustable the pinch-rollers according to the paper width. Digital adjusts the force and speed to handle the cutting process. Inertial rotating blade holder enables more accurate and high-quality cutting. The emergency stop/start feature allows you to stop cutting and restart. Backlight LCD for easier handling of the working process. USB connection is accomplished through serial.
Application:
It can be used for cutting indicator/ advertisement sign/ window decoration/ automobile film/ heat transfer lettering film. Suitable for advertising industry, Automobile beauty industry, fashion design industry,etc,
plotter cutting machine vinyl cutter
Detailed Images


Aluminum roll

Aluminum roll ensures the smooth moving of the cutting material.

Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.

--------------占位---------------

Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinkle
paper, pressure balance.


Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate

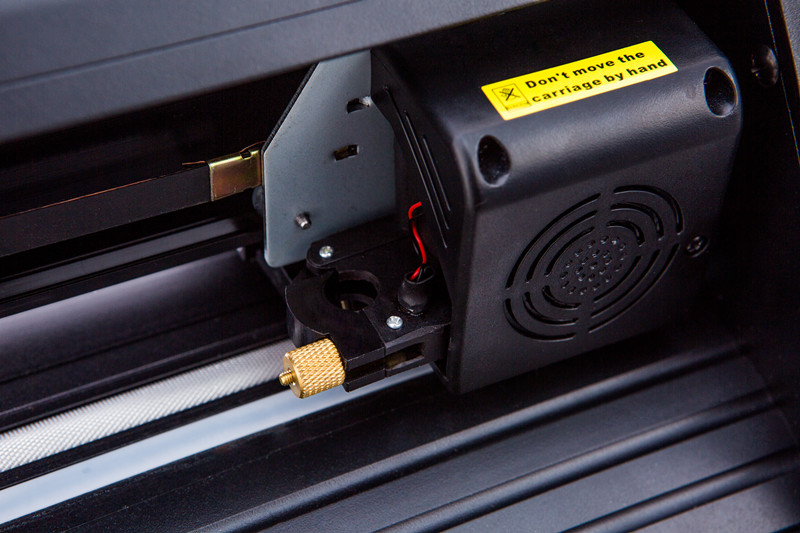

High  accuracy carriage
The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.



USB& Serial Ports
Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
